Axle and Manual Transmission Oils

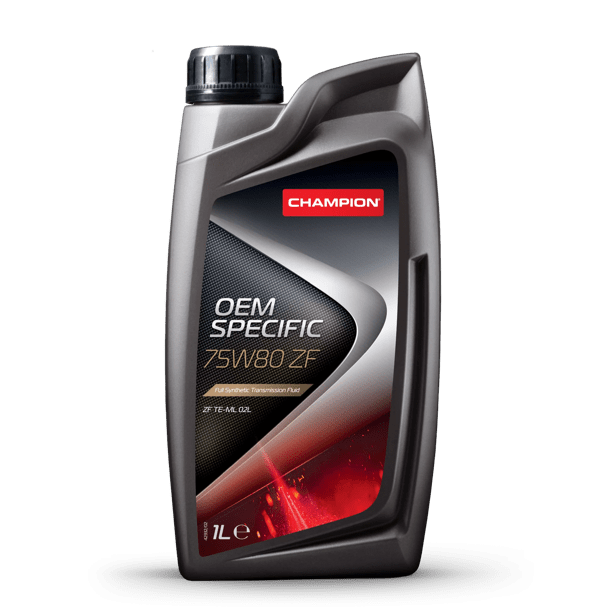

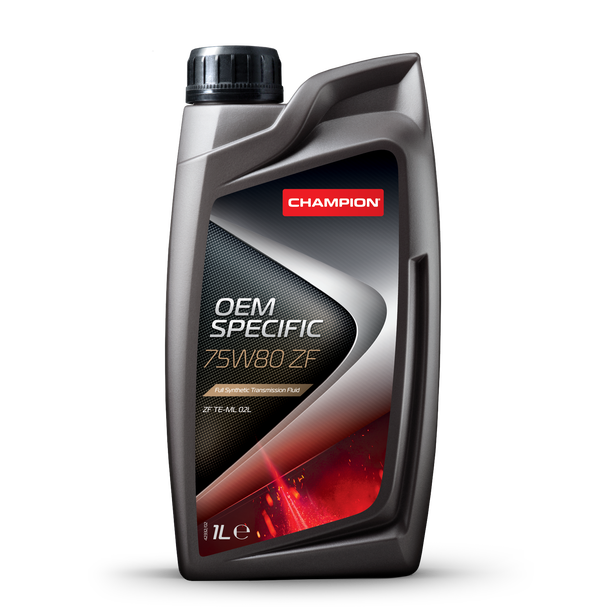

CHAMPION OEM SPECIFIC 75W80 ZF

This full synthetic gear oil is used in manual synchromesh transmissions, procuring improved shift comfort, low temperature fluidity and longer service life.

Product: 2202
See available sizes and packaging
Find Salespoint
TDS MSDS
Meets OEM Specifications
  • DAF - MEET REQUIREMENTS
  • DTFR - 13B150
  • EATON - Extended drain
  • FIAT - 9.55550-MZ10
  • IVECO - MEET REQUIREMENTS
  • MAN - 341 E-3
  • MAN - 341 Z-4
  • MB - 235.4
  • RENAULT - B0032/2 Annex 3
  • VOLVO - 97305
  • VOLVO - 97307
  • ZF - TE-ML 08
  • ZF - TE-ML 13
  • ZF - TE-ML 24A
Meets Industry Specifications
  • API - GL-4
Description

This is a full synthetic lubricant based on carefully selected very high quality base oils, which is recommended for the manual transmissions of most commercial vehicles. It is adapted to the requirements of synchromesh transmissions,procuring improved shift comfort,low temperature fluidity and longer service life.

Applications

This product meets the requirements of many commercial vehicle builders and/or gearbox manufacturers,including DAF,IVECO,Eaton Europe (300.000 km or 3 years),Renault (in accordance with B0032/2 Annex 3) and Volvo.

Performance

This superior quality transmission oil has been formulated to deliver excellent resistance to high temperature degradation and to guarantee prolonged fluid and gear life. Excellent frictional properties ensure easy and smooth gear shifting.

Test Method Unit Average Results
Density at 15°C ASTM D4052 g/ml 0.856
Kinematic viscosity at 40°C ASTM D445 mm²/s 54.6
Kinematic viscosity at 100°C ASTM D445 mm²/s 9.43
Viscosity index ASTM D2270 157
Pour point ASTM D6892 °C -42
Brookfield viscosity at -40°C ASTM D2983 mPa.s 80000
Flash Point COC ASTM D92 °C 234

We reserve the right to alter the general characteristics of our products in order to let our customers benefit of the latest technical evolutions.

PEAK ENGINE PERFORMANCE

Insulating engine parts in a protective shield​

The different layers of additive chemistry inside Champion lubricants immediately form a protective shield around the engine parts. This guarantees a robust oil film at any given moment, allowing maximum engine output even in the harshest and most demanding conditions. ​​

MAXIMUM PROTECTION

Shielding engine parts from dust and particles​

The shielding components in Champion Lubricants actively capture small dust and carbon particles, keeping them sealed between microscopic plates. This limits abrasive wear on the engine components, ensuring optimum engine performance at all times.

OPTIMAL HEAT CONTROL

Shielding the engine from excessive heat​​​

Adaptive Shield Technology ensures Champion lubricants can easily drive out the excessive heat inside the engine, guaranteeing oil film strength is maintained throughout the complete service life of the oil and the engine is protected at any given moment. ​
