champion-oem-specific-multi-vehicle-atf-hd-nd
Automatic Transmission Fluids

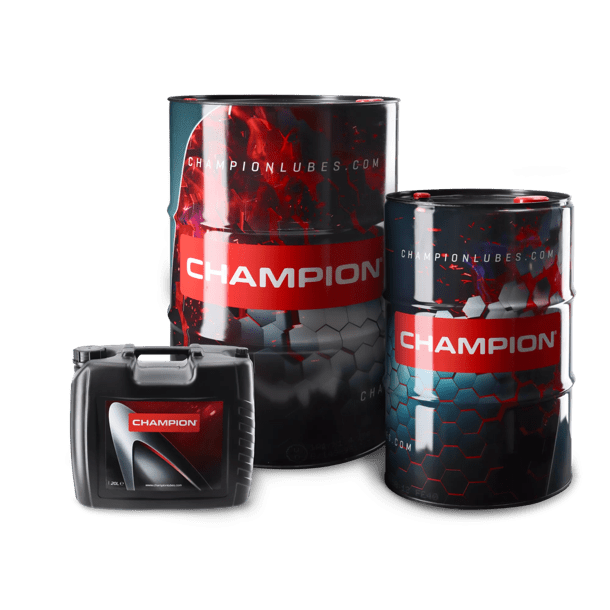

CHAMPION OEM SPECIFIC MULTI VEHICLE ATF HD-ND

This automatic transmission fluid is a high performance heavy duty synthetic transmission fluid designed to deliver normal drain capabilities.

Product: 3018
See available sizes and packaging
Find Salespoint
TDS MSDS
Meets OEM Specifications
  • ALLISON - C4
  • ALLISON - TES 295
  • DTFR - 13C170
  • FORD - MERCON
  • GM - DEXRON III-H
  • MAN - 339 L1
  • MAN - 339 V1/Z1
  • MAN - 339 V2/Z2
  • MAN - 339 Z11
  • MB - 236.9
  • VOITH - H55.6335xx
  • VOITH - H55.6336xx
  • VOLVO - STD 1273,40 (97340)
  • VOLVO - STD 1273,41 (97341)
  • ZF - TE-ML 03D
  • ZF - TE-ML 04D
  • ZF - TE-ML 14A
  • ZF - TE-ML 14B
  • ZF - TE-ML 14C
  • ZF - TE-ML 16L
  • ZF - TE-ML 17C
  • ZF - TE-ML 20B
Description

This automatic transmission fluid is an high performance heavy duty synthetic transmission fluid. It is designed to deliver normal drain capabilities up to 60 000 km. It contains high quality synthetic base oils and an advanced additive technology. It is suitable for use in automatic transmission systems in both heavy duty trucks and buses.

Applications

This automatic transmission fluid is designed for extended drain intervals for heavy duty trucks and buses as well as off-road equipment.

Performance

This superior quality synthetic transmission oil has been designed to provide exceptional protection and extends oil and automatic transmission life. It has excellent cold start properties, very good shear stability.

Test Method Unit Average Results
Colour VISUAL RED
Brookfield viscosity at -40°C ASTM D2983 mPa.s 18000
Pour point ASTM D6892 °C -48
Viscosity index ASTM D2270 181
Kinematic viscosity at 100°C ASTM D445 mm²/s 8.4
Kinematic viscosity at 40°C ASTM D445 mm²/s 42
Density at 15°C ASTM D4052 g/ml 0.848

We reserve the right to alter the general characteristics of our products in order to let our customers benefit of the latest technical evolutions.

PEAK ENGINE PERFORMANCE

Insulating engine parts in a protective shield​

The different layers of additive chemistry inside Champion lubricants immediately form a protective shield around the engine parts. This guarantees a robust oil film at any given moment, allowing maximum engine output even in the harshest and most demanding conditions. ​​

MAXIMUM PROTECTION

Shielding engine parts from dust and particles​

The shielding components in Champion Lubricants actively capture small dust and carbon particles, keeping them sealed between microscopic plates. This limits abrasive wear on the engine components, ensuring optimum engine performance at all times.

OPTIMAL HEAT CONTROL

Shielding the engine from excessive heat​​​

Adaptive Shield Technology ensures Champion lubricants can easily drive out the excessive heat inside the engine, guaranteeing oil film strength is maintained throughout the complete service life of the oil and the engine is protected at any given moment. ​
